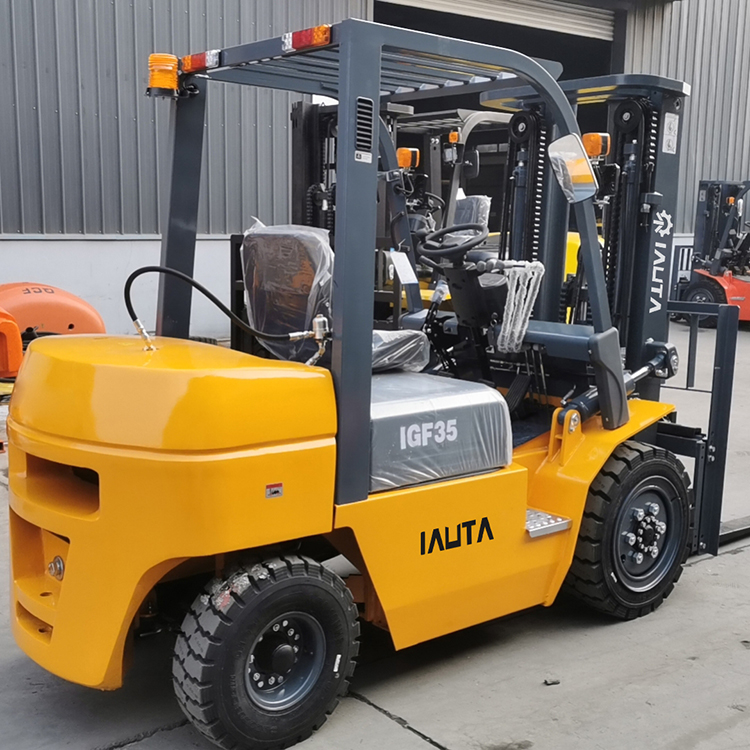

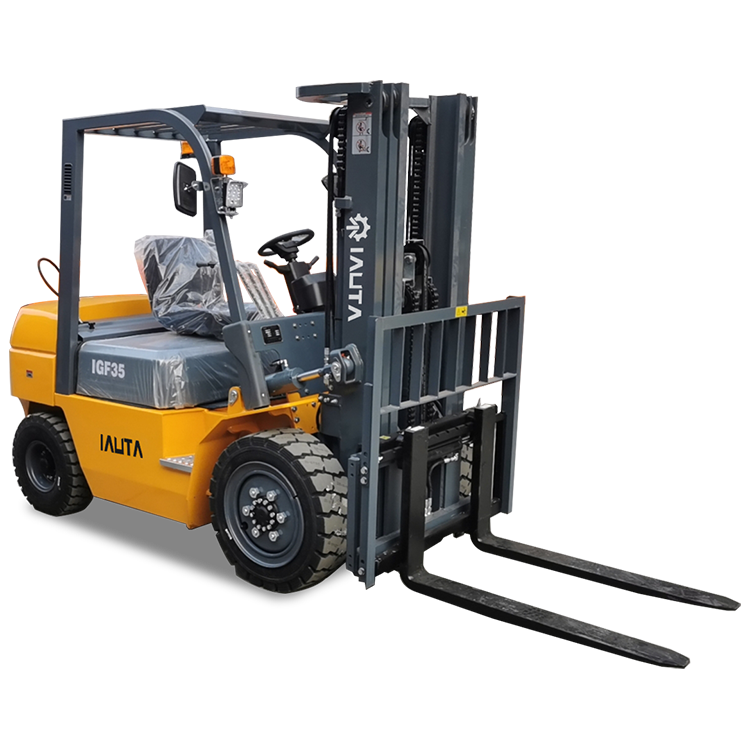

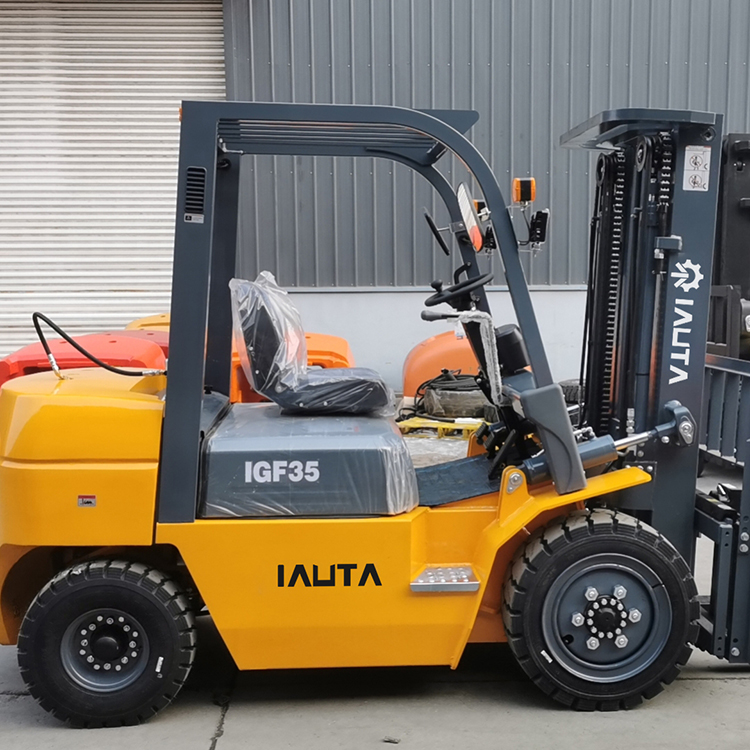

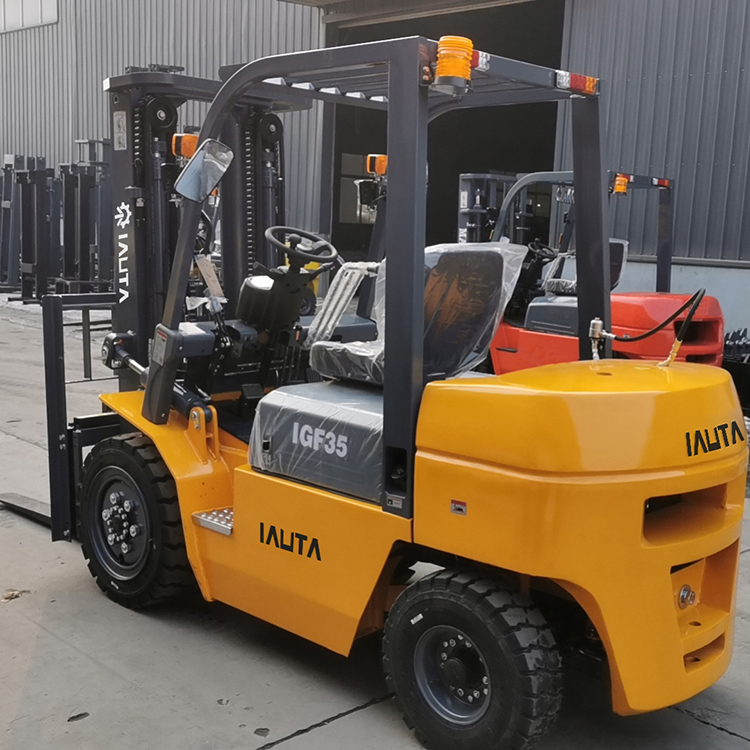

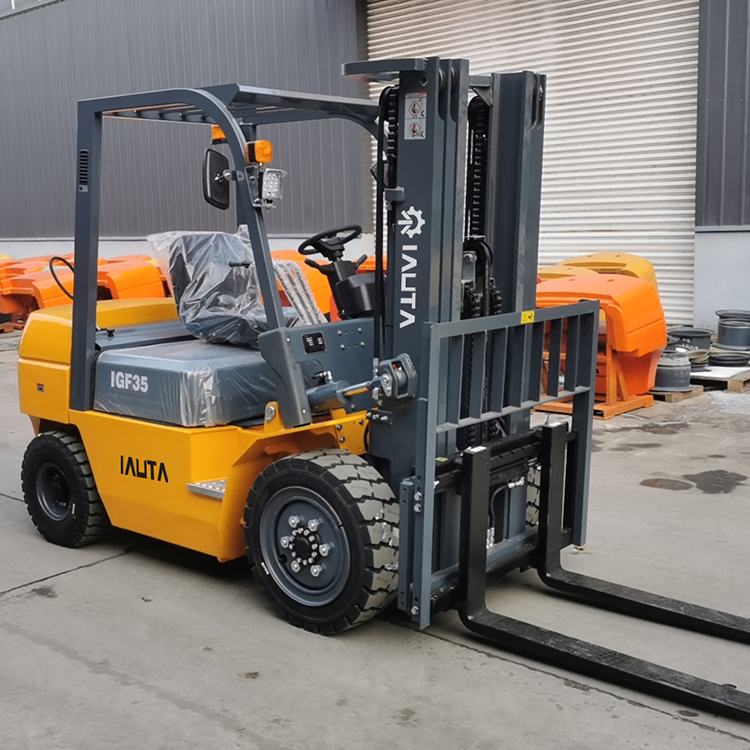

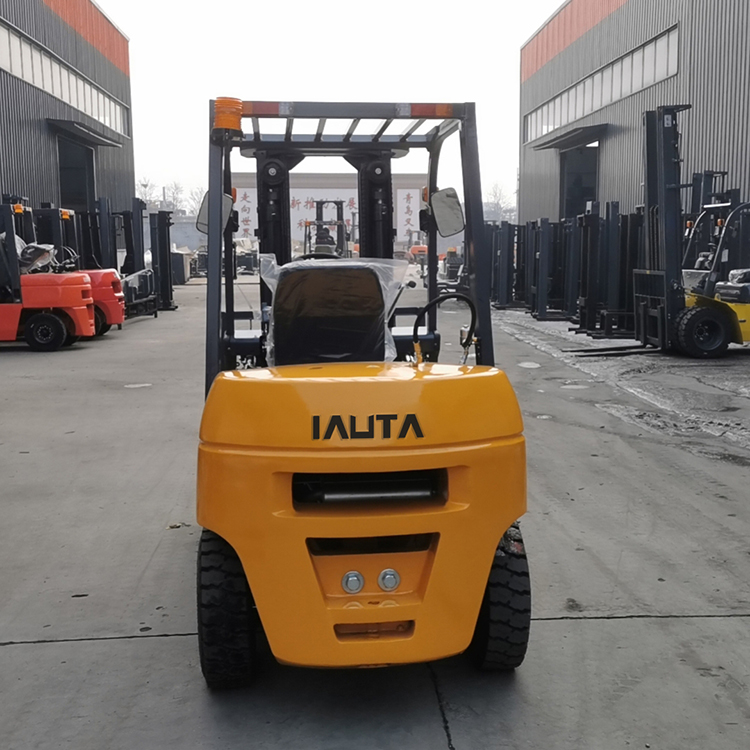

IGF35
3.5 ton LPG & Gasoline forklift
The 3.5-ton Q series gasoline forklift offers strong performance and great value. It’s an efficient option for handling loads.
- Load capacity(Kg)3 500
- Load center(mm)500
- PowerLPG & Gasoline
- Engine ModelGQ-4Y
PRODUCT FEATURE
1. Sleek and eco-friendly design with a modern look.
2. Wide-view mast for better driver visibility.
3. Reliable LCD digital dashboard with a user-friendly interface for accurate operation..
4. New steering adjustment mechanism for enhanced comfort and reliability.
5. High-efficiency intake system improves engine performance and longevity.
PARAMETERS
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | Value |
|---|---|---|
| Model | IGF35 | |
| Power type | LPG & Gasoline | |
| Lift capacity | (kg) | 3500 |
| Load center distance | (mm) | 500 |
| Battery (Voltage/Capacity) | (V/Ah) | 12/80 |
| PERFORMANCE PARAMETERS | ||
| Max. lift height | (mm) | 3000 |
| Free lift height | (mm) | 160 |
| Mast tilt angle (front/rear) | () | 6/12 |
| Max. lift speed (full load/no load) | (mm/s) | 330/370 |
| Max. travelling speed (full load/no load) | (km/h) | 19/19 |
| Min. turning radius (outer side) | (mm) | 2420 |
| Gradeability (full load/no load) | (%) | 15/20 |
| Overweight | (kg) | 4500 |
| DIMENSIONS | ||
| Length (without fork) | (mm) | 2693 |
| Width | (mm) | 1225 |
| Height of mast | (mm) | 2125 |
| Overall height (overhead guard) | (mm) | 2090 |
| Height of load-backrest | (mm) | 1225 |
| Min. ground clearance | (mm) | 135 |
| Wheel base | (mm) | 1700 |
| OTHER PARAMETERS | ||
| Front tires | 28x9-15-14PR | |
| Rear tires | 6.50-10-10PR | |
| Fork size (L*W*H) | (mm) | 1220×122×45 |
| ENGINES | ||
| Engine model | GUANGQING GQ4Y | |
| Rated power | (kW/r) | Gasoline: 41/2800 CNG: 34.5/2800 |
| Rated torque | (N.m/r) | Gasoline: 161@1800 CNG: 137@1800 |
| Number of cylinders | 4 | |
| Displacement | (L) | 2.24 |
DETAILS
The GQ-4Y CNG/gasoline dual-fuel engine is developed using American IMPCO technology and uses a Nissan carburetor imported from Japan. It is the preferred power for 1-3 ton clean energy forklifts.
The advanced ergonomic design, with the integrated control handle and centrally placed switches, makes operation fast and easy.
Fuel switch for easy and quick switching of different fuels
LED lights provide bright, energy-efficient lighting for safer operation.
Using top-tier industrial tires from China ensures the product’s longevity, stability, and safety
Adopt a hydraulic transmission for smoother operation
OPTIONS
It provides the ability to move the forks horizontally, helping customers use the forklift more efficiently
The solid tires of the forklift offer enhanced durability, puncture resistance, and lower maintenance, ensuring reliable performance in various challenging environments.
We offer a variety of popular engine options for you to choose from, Such as Nissan K25. These options ensure that you can quickly obtain replacement parts locally.
