ITM254-504

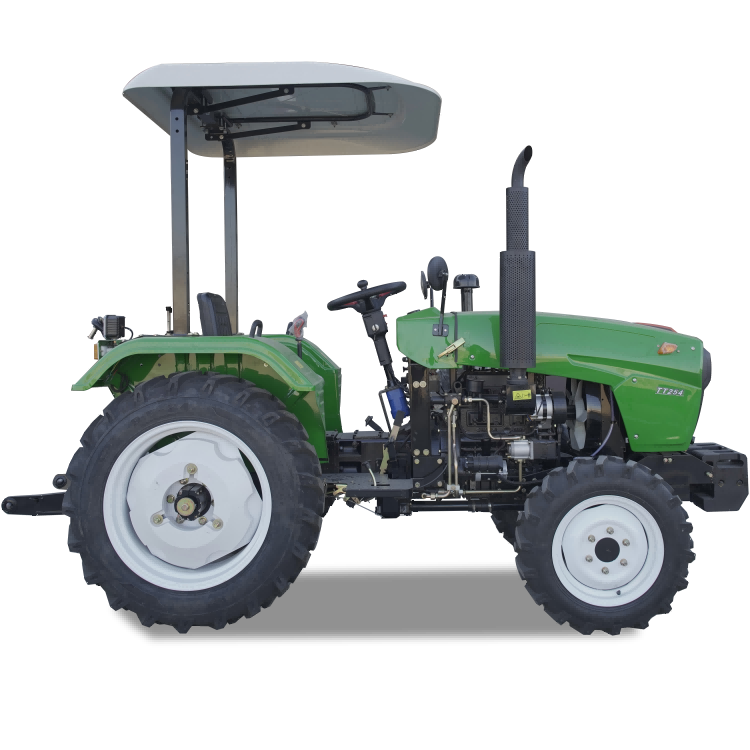

25-50 HP Mini diesel tractor
The 25-50 horsepower small tractors are compact and flexible, fuel-efficient, suitable for small-scale and complex terrain agriculture, efficient and convenient.
- Power(HP)25-50
- GEAR8F+2R
- Engine4 cyliner(Ⅱ)
PRODUCT FEATURE
1.Robust Power System: The series offers a range of power options from 18.4kW to 36.8kW (corresponding to models ITM254 to ITM504), catering to various agricultural tasks. For instance, the ITM504 model is equipped with 36.8kW of power output, ensuring efficient operation even under heavy load conditions.
2.Flexible Dimensions and Excellent Maneuverability: These tractors feature adjustable track widths; the front track width starts at 1000mm (adjustable between 1000-1300mm) and the rear track width supports stepless adjustment within the same range. With a minimum ground clearance of 300mm, they demonstrate great maneuverability over complex terrains.
3.Efficient Hydraulic System and Three-point Hitch: All models come with a rear three-point suspension system (Category 1), supporting simple valve or optional 1-group, 2-group hydraulic outputs, along with internal hydraulic or optional forced hydraulic systems. The maximum lifting force varies by model, ranging from ≥4.2kN for ITM254 to ≥8.9kN for ITM504, suitable for a variety of implement attachments.
4.Customizable Configurations to Meet Diverse User Needs: Besides the standard configurations, multiple additional options are available, such as tire size choices (standard front/rear tire sizes are 6.00-16/9.50-24, with an option for 6.50-16/11.2-24), and the availability of air brake systems as add-ons, enhancing the flexibility and applicability of the products.
PARAMETERS
Swipe to view more data
| MODEL | UNIT | ITM254 | ITM304 | ITM354 | ITM404 | ITM454 | ITM504 | |
| DIMENSIONS | TYPE | / | DRIVE TYPE(4×4) | |||||
| Power | KW | 18.4 | 22.1 | 25.8 | 29.4 | 33.1 | 36.8 | |
| DIMENSION(L×W×H) | MM | 3320×1250×2280 | 3420×1250×2280 | |||||
| WHEEL BASE | MM | 1650 | 1770 | |||||
| MIN.GROUND CLEARANCE | MM | 300 | ||||||
| MINIMUM OPERATING MASS | KG | 1380 | 1480 | |||||
| TRACK WIDTH | MM | FRONT TRACK WIDTH:1000(1000-1300)Stepped Adjustment REAR TRACK WIDTH:1000(1000-1300)Stepless Adjustment | ||||||
| MATCHED POWER | CLUTCH TYPE | / | DRY-TYPE,SINGLE-ACTING | |||||
| ENGINE | / | (Ⅱ)4-CYLINDER( 25/30HP 3-CYLINDER) | ||||||
| RATED SPEED | RPM | 2400 | ||||||
| WORKING PART | GEAR | / | 8F+2R(OPTION:8F+BR) | |||||
| PTO TYPE | 1 | 6-SPLINE、φ35、I TYPE(OPTON.8-SPLINE) | ||||||
| PTO RATED POWER | KW | ≥15.7 | ≥18.8 | ≥22.0 | ≥25.0 | ≥28.2 | >31.3 | |
| PTO SPEED | RPM | 540/720 | ||||||
| HYDRAULIC SYSTEM | THREE-POINT LINKAGE | / | REAR,THREE-POINT SUSPENSION,CAT1 | |||||
| HYDRAULIC OUTPUT | / | SIMPLE VALVE(OPTONAL 1-GROUP,2-GROUP) | ||||||
| HYDRAULIC ADJUSTMENT | / | INNER HYDRUALIC (OPTONAL FORCED HYDRAULC SYSTEM) | ||||||
| MAX. LIFTING FORCE AT FRAME CENTER | KN | ≥4.2 | ≥5.0 | ≥5.9 | ≥7.1 | ≥8.0 | ≥8.9 | |
| TYRE TYPE | STANDARD TYRE SIZE FRONT/REAR | / | 6.00-16/9.50-24 | |||||
| OPTIONAL TYRE(1) | 6.50-16/11.2-24 | |||||||
| OPTIONS | AIR BRAKE | / | OPTIONAL | |||||
DETAILS
High-efficiency power output and fuel economy, Its robust durability and low maintenance design

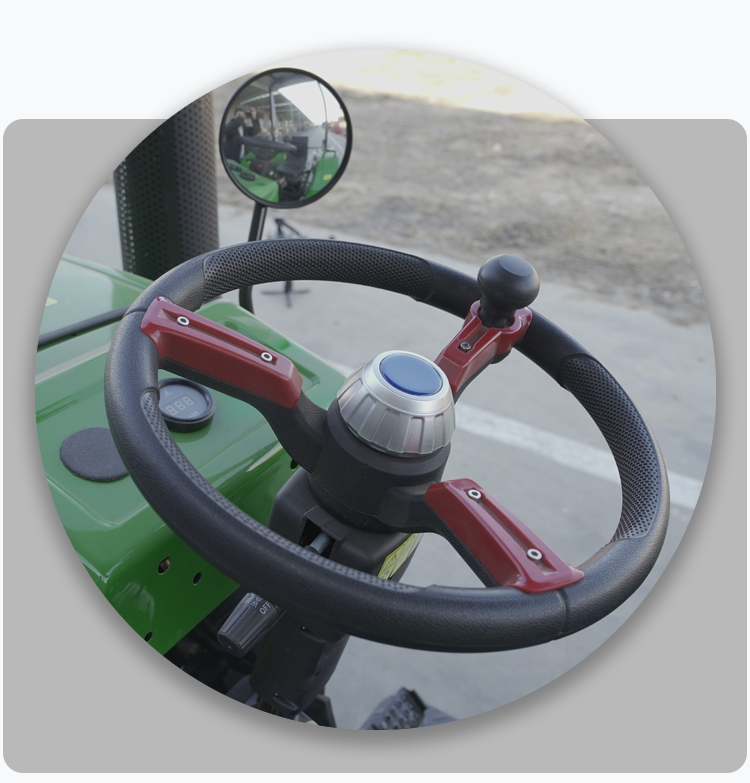

Gives smooth, easy control for better handling. Its comfy shape cuts down tiredness, making long days more pleasant.

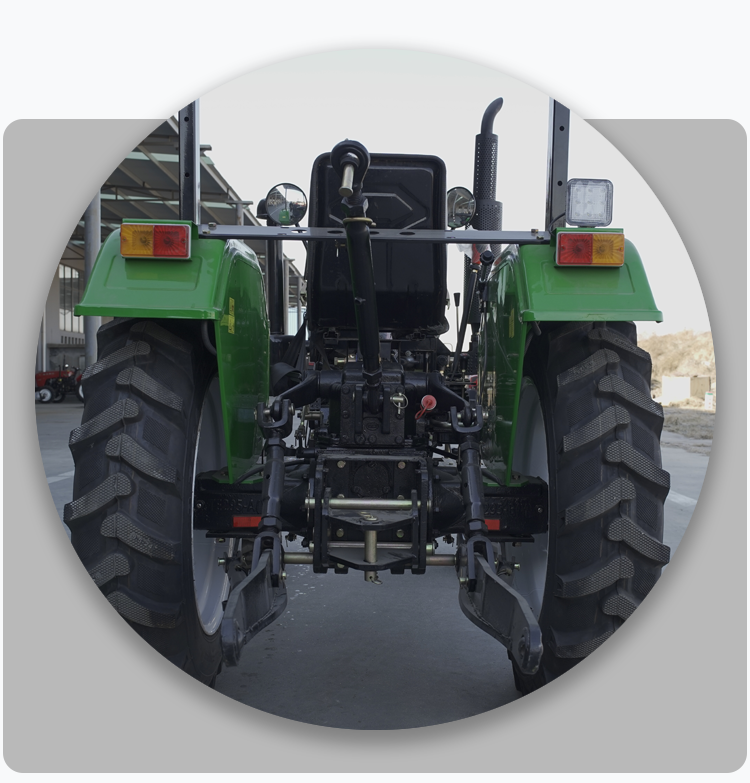

Lifts and holds tools steady with ease. Its simple setup saves time, making work quicker

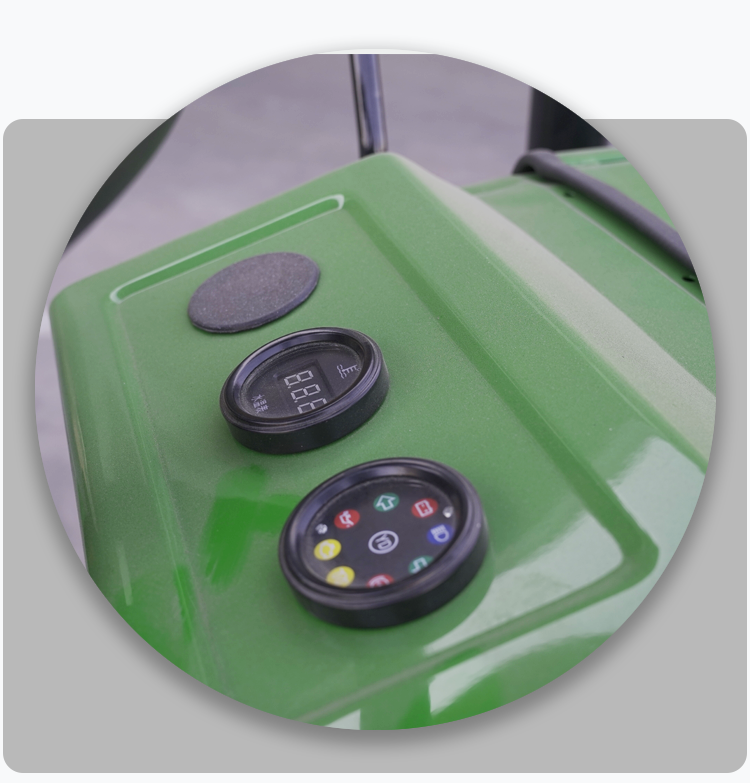

Shows clear, handy info at a glance. Its straightforward layout keeps you in charge without any fuss.

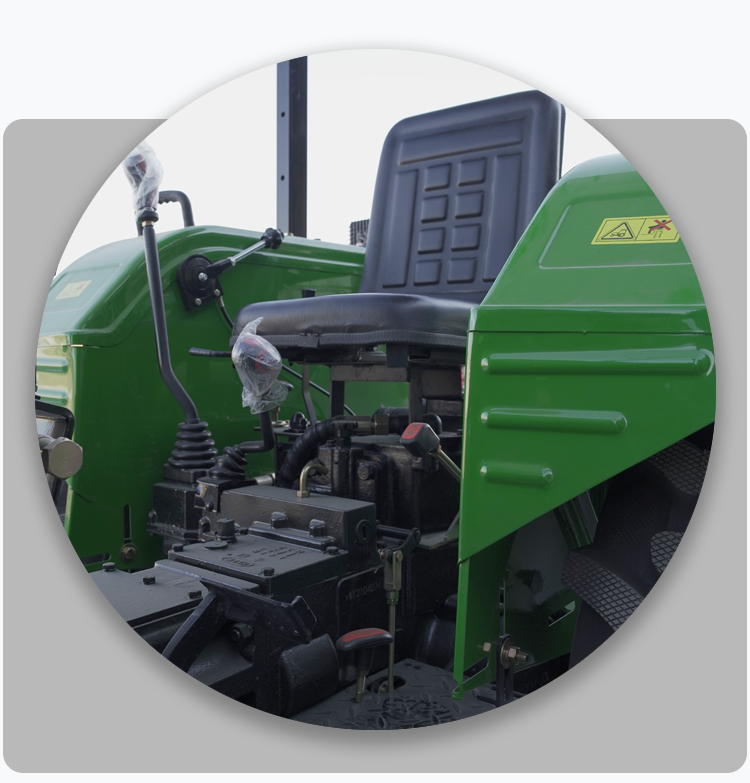

Feels soft and fits you well. It keeps you comfy all day long.
Canopy blocks sun and rain nicely. It keeps you cool and dry while working.
