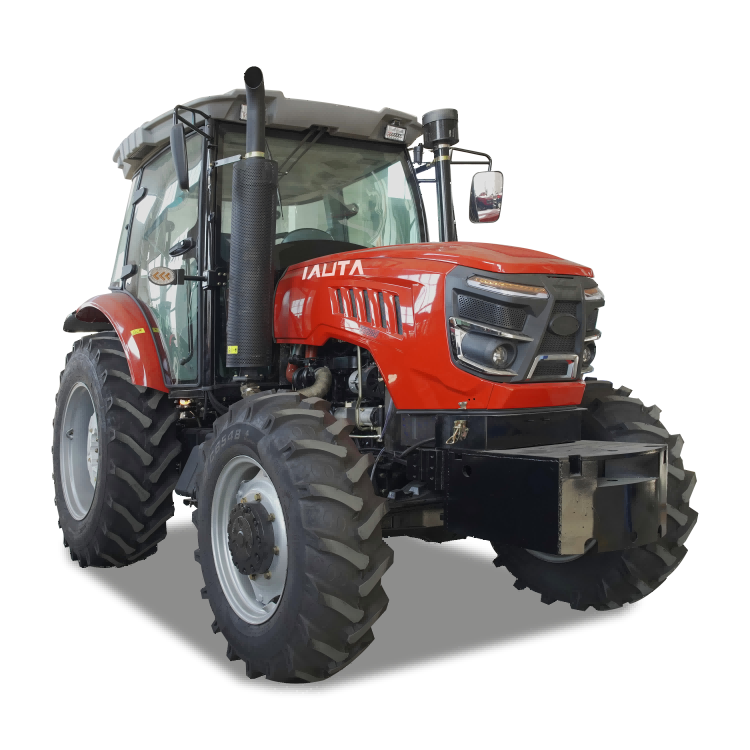

ITD854-1604

The 80-160 horsepower tractors are strong and fuel-efficient. They handle tough land with 4-wheel drive and lift tools up to 20.7 kN easily.

Product Tabs

Lots of Power: 80-110 horsepower (66.2-81 kW) with a 4-cylinder engine, great for bigger farm jobs.
Moves Easy: 4-wheel drive and adjustable tracks (1620-1820 mm) handle rough or muddy ground well.
Lifts Tools: Hydraulic system lifts up to 20.7 kN, perfect for heavy plows or other gear.
Smooth Driving: 24 forward and 8 reverse gears (or 16F+8R option) make it simple to control and save fuel.

SheetJS Table Export

Swipe to view more data

MODEL		UNIT	ITD904	ITD1004	ITD1104
DIMENSIONS	TYPE	/	DRIVE TYPE(4×4)
	kW	KW	66.2	74.0	81.0
	DIMENSION(L×W×H)	MM	4485×2100×3060
	WHEEL BASE	MM	2385
	MIN.GROUND CLEARANCE	MM	420
	MINIMUM OPERATING MASS	KG	4560
	TRACK WIDTH	MM	FRONT TRACK WIDTH:1620(1620～1820)Stepped Adjustment REAR TRACK WIDTH:1620(1620～1820)Stepless Adjustment
MATCHED POWER	CLUTCH TYPE	/	DRY-TYPE,DOUBLE-ACTING
	ENGINE	/	(Ⅱ)YTO 4-CYLINDER
	RATED SPEED	RPM	2300
WORKING PART	GEAR	/	TD 24F+8R(OPTION:16F+8R)
	PTO TYPE	/	8-SPLINE、φ38、I TYPE(Option:6-SPLINE)
	PTO RATED POWER	KW	≥56.3	≥63	≥69
	PTO SPEED	RPM	760/1000 OR 760/850 OR 540/1000
HYDRAULIC SYSTEM	THREE-POINT LINKAGE	/	REAR,THREE-POINT SUSPENSION,CAT2
	HYDRAULIC OUTPUT	/	3-GROUP VALVE
	HYDRAULIC ADJUSTMENT	/	FORCED HYDRAULC SYSTEM,POSITION CONTROL,FLOATING CONTROL
	MAX. LIFTING FORCE AT FRAME CENTER	KN	≥15.9	≥20.2	≥20.7
TYRE TYPE	STANDARD TYRE SIZE FRONT/REAR	/	12.4-24/16.9-34
	OPTIONAL TYRE(Ⅰ)	/	13.6-24/16.9-38
OTHER OPTIONS		/	Cabin,Air brake,ROP,Sunroof

× Subject MessageSend

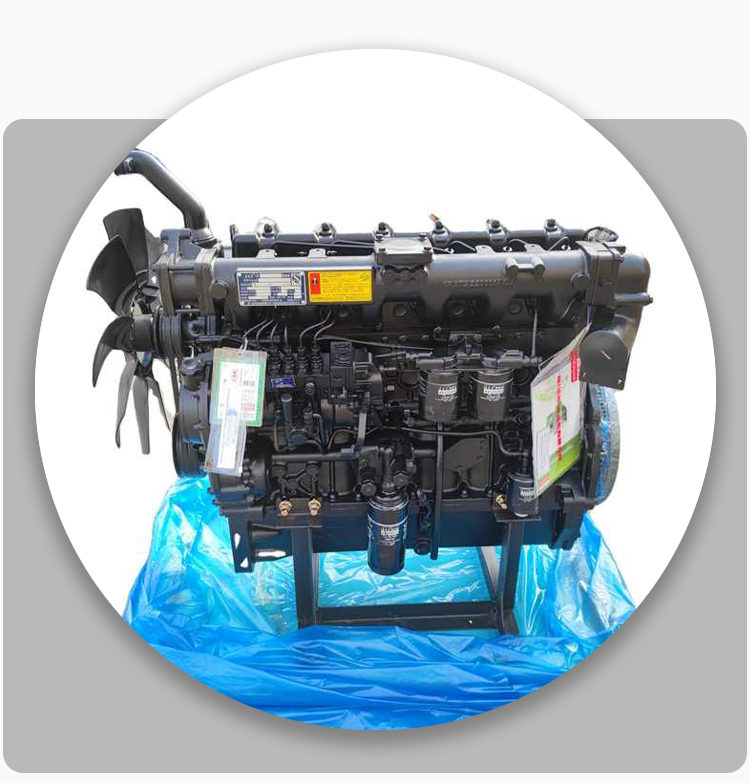

The YTO LR4C5 engine is really strong to handle tough jobs easily. It also saves a lot of fuel, helping you keep costs down while working hard.

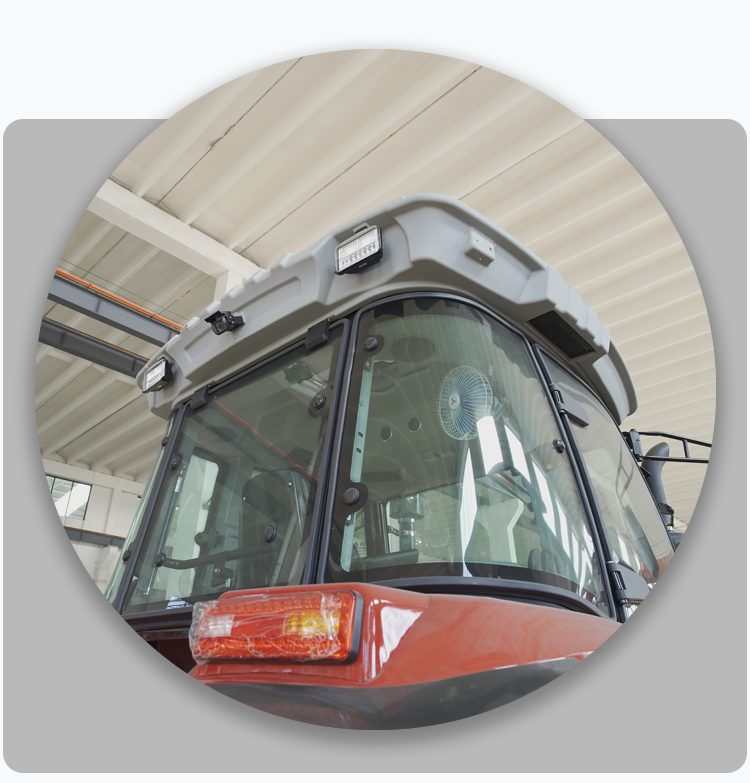

Roomy and keeps you comfy. It has clear windows to see all around easily.

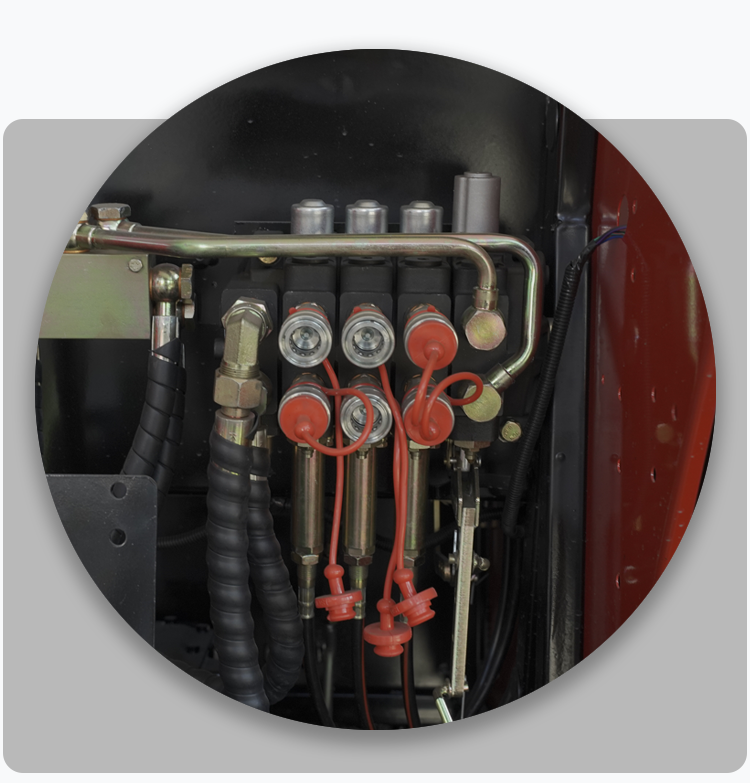

The 3 group hydraulic output provides efficient control for multiple attachments, enhancing productivity.

Shows clear, handy info at a glance. Its straightforward layout keeps you in charge without any fuss.

Keeps dust and dirt out of the engine. It helps the machine run better and last longer.

Helps keep the engine cool by dissipating heat, ensuring optimal performance and preventing overheating.

Customise your equipment plan
