IBL388H
2 500 kg Backhoe Loader
The IBL388H backhoe loader is a multifunctional powerhouse, This backhoe loader features four-wheel steering and crab walk capabilities, offering excellent maneuverability and operational flexibility. It is also equipped with an engine preheating system and air conditioning, ensuring efficient performance in all weather conditions.
- Load capacity2500 kg
- Operating Weight10 500 kg
- Bucket Capacity1.0 m³
- Engine ModelYuchaiYC4A105Z-T20
PRODUCT FEATURE
1.The Backhoe Loader is equipped with an integral frame, which gives it excellent stability and makes it ideal for excavation work.
2.The side-shift excavating device has high strength and good structural stability, and the loading end uses an advanced eight-bar linkage mechanism, which performs well.
PARAMETERS
| Main Parameters | Transmission System | ||
|---|---|---|---|
| Overall Operating Weight | 10500KG | Final Reducer | Single Stage Final Reducer |
| Transport Dimension (L*W*H) | 6420*2530*3120 | Rated Loader of Axle | 13t |
| Wheel base | 2335mm | Torque Converter | |
| Height (excavation arm folding) | 3120mm | Model | YJ320 |
| Bucket Capacity | 1.2m³ | Type | Single-stage Three Elements |
| Breakout Force | 47KN | Max. Efficiency | 84.4% |
| Loading Lifting Capacity | 2500KG | Inlet Pressure | 0.4~0.65Mpa |
| Bucket Dumping Height | 3050mm | Outlet Pressure | 1.6Mpa-1.9Mpa |
| Bucket Dumping Distance | 870mm | Cooling Method | Oil-cooling Pressure Circulation |
| Wheel base | 2050 mm | Gearbox | |
| Backhoe Capacity | 0.3m³ | Type | Mechanically operated hydraulic synchronous shift |
| Max. Digging Depth | 3820(stand)mm 4770(Telescopic arm) mm | Model | ZL15 |
| Swing Angle of Excavator Grab | 180° | Gears | Four Gears Ahead, Four Gears Astern |
| Maximum Digging Force | 50KN | Max.Speed | 36 Km/h |
| Engine | Tyre | ||
| Model | YUCHAI YC4A105Z-T20 | Model | 16.9-28 |
| Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber | Pressure of Front wheel | 0.35Mpa |
| Cylinder-Inside Diameter*Stroke | 4-108*132 | Pressure of Back Wheel | 0.35Mpa |
| Rated Power | 75KW | Brake System | |
| Rated Speed | 2200r/min | Service Brake | Gas pushed oil |
| Min. Fuel Consumption | ≤230g/km.h | built-in | |
| Max.Torque | ≥400N.M | Self-regulation | |
| Displacement | 4.8L | Self-balance | |
| Steering System | Emergency Brake | Operation Power Implementing brake | |
| Model of Steering Device | BZZ5-250 | Manual Operation Power Terminating Brake | |
| Steering Angle | ±35° | Hydraulic System | |
| Min. turning radius | 6950mm (Bucket outside) | Working pump discharge | 63ml/r |
| Pressure of the system | 14Mpa | Working pump pressure | 20Mpa |
| Axle | Type of steering gear | BZZ5-250 | |
| Manufacturer | Feicheng Axle Factory | Hydraulic tank capacity | 130L |
| Model | WZL100DF | Diesel tank capacity | 130L |
| The parameters are subject to change without notice | |||
DETAILS

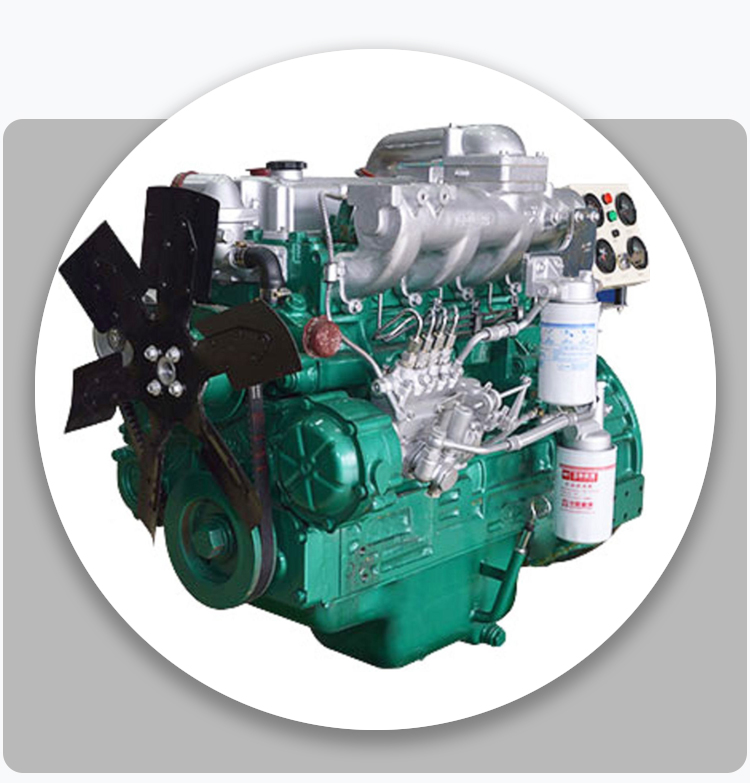

Yuchai agricultural equipment special power for excellent power, reliability, economy, high efficiency and wide applicability of the reputation of the industry.

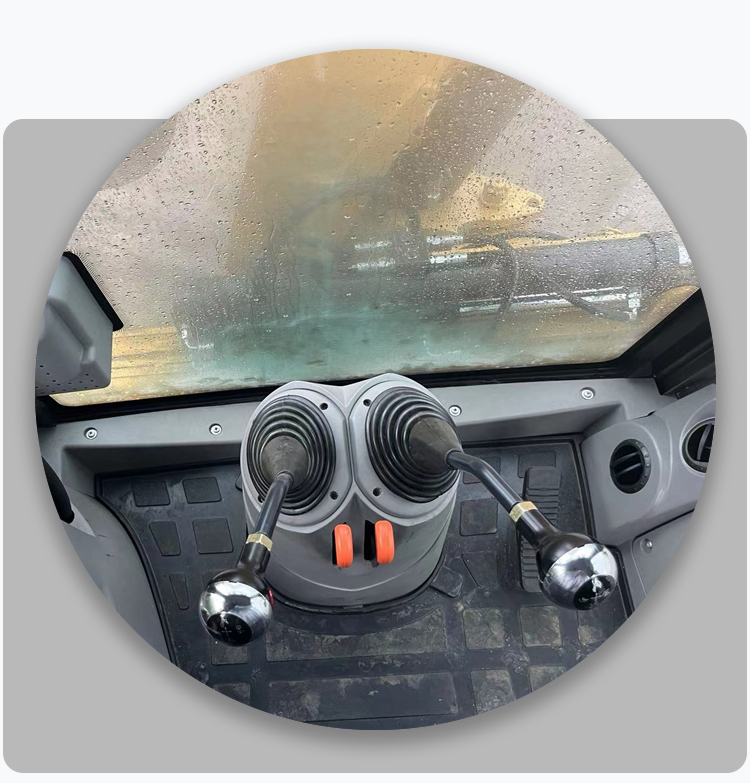

Equipped front and rear Mechanical joystick, air conditioning, and a rearview camera to ensure precise and comfortable operation.
The steering wheel has a power knob for easy control and maneuverability.
The double-lever layout makes the control more flexible and suitable for various complex working conditions, improving the operator’s comfort and production efficiency.

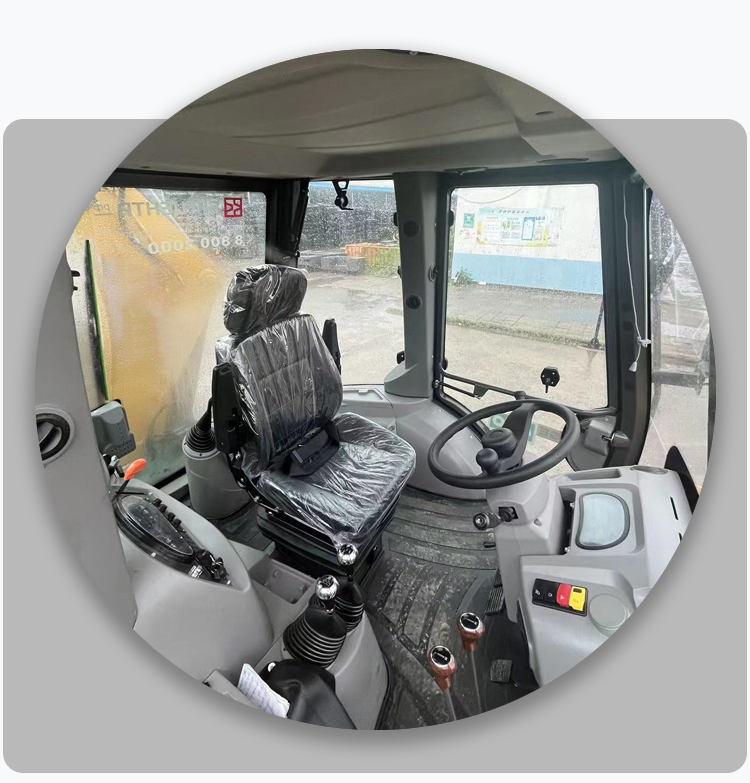

The built-in air conditioning and radio enhance operator comfort during use. These features ensure a more pleasant and efficient working environment.
OPTIONS ATTACHMENTS
Cummins engine is optional to meet the needs of users in different regions
The 6-in-1 bucket is a versatile tool that lets you dig, load, and grade. It’s a real time-saver that helps you get more done.
An breaker is used for demolishing concrete structures and breaking rocks into smaller pieces. It enhances the machine’s capability to perform heavy-duty tasks in construction and mining operations.
