IBL388
2 500 kg Backhoe Loader
The IBL388 backhoe loader is a multifunctional powerhouse, designed to tackle a wide range of tasks such as backhoe excavation, crushing, drilling, and clamping. This versatile machine excels in providing easy transfer between sites, ensuring low energy consumption while delivering high performance. Its lightweight design and ease of maintenance further enhance its appeal, making it an ideal choice for various construction projects.
- Load capacity2500 kg
- Operating Weight8200 kg
- Bucket Capacity1.0 m³
- Engine ModelYuchaiYC4A105Z-T20
PRODUCT FEATURE
1.The Backhoe Loader is equipped with an integral frame, which gives it excellent stability and makes it ideal for excavation work.
2.The side-shift excavating device has high strength and good structural stability, and the loading end uses an advanced eight-bar linkage mechanism, which performs well.
PARAMETERS
| main parameters | Transmission System | ||
|---|---|---|---|
| Overall Operating Weight | 8200KG | Final Reducer | Single Stage Final Reducer |
| Transport Dimension（L*W*H） | 6050×2465×3100 | Rated Loader of Axle | Front 22.5t Rear18.5t |
| Wheel base | 2280mm | Torque Converter | |
| Min. Ground Clearance | 300mm | Model | YJ290 |
| Bucket Capacity | 1.0m³ | Type | Single-stage Three Elements |
| Breakout Force | 47KN | Max. Efficiency | 84.4% |
| Loading Lifting Capacity | 2500KG | Inlet Pressure | 0.4Mpa-0.65Mpa |
| Bucket Dumping Height | 2650mm | Outlet Pressure | 1.5Mpa-1.8 Mpa |
| Bucket Dumping Distance | 1025mm | Cooling Method | Oil-cooling Pressure Circulation |
| Digging Depth | 52mm | Gearbox | |
| Backhoe Capacity | 0.3m³ | Type | Fixed Shaft Power Transmission |
| Max. Digging Depth | 4085mm | OilPressure of Clutch | 1373Kpa—1569 Kpa |
| Swing Angle of Excavator Grab | 180° | Gears | Two GearsAhead,Two GearsAstem |
| Max. Pulling Force | 60KN | Max. Speed | 24Km/h |
| Engine | Tyre | ||
| Engine Model | YuchaiYC4A105Z-T20 | Model | 14-17.5/19.5L-24 |
| Type | Turbocharging Four-Stroke | Pressure of Front wheel | 0.4Mna |
| Cylinder-Inside Diameter'Stroke | 4-108×132 | Pressure of Back Wheel | 0.35Mpa |
| Rated Power | 75KW | Brake System | |
| Rated Speed | 2200r/min | Service Brake | Air Over Oil Caliper Brake |
| Min. Fuel Consumption | 230g/km.h | External Type | |
| Max.Torque | 400N.m | Self-regulation | |
| Displacement | 4.837L | Self-balance | |
| Steering System | Emergency Brake | Operation Power | |
| Model of Steering Device | BZZ5-250 | Implementing brake | |
| Steering Angle | ±36° | Manual Operation | |
| Min.turning radius | 6581mm | Power Terminating Brake | |
| Pressure of the system | 12Mpa | Hydraulic System | |
| Axle | DiggingPower ofExcavator Grab | 50KN | |
| Manufacturer | Feicheng Axle Factory | Digging Power of Dipper | 31KN |
| Main Transmission Type | Double Reduction | Bucket Lifting Time | 6.8S |
| Bucket Lowering Time | 3.1S | ||
| Bucket Discharge Time | 2.0S | ||
| The parameters are subject to change without notice！ | |||
DETAILS

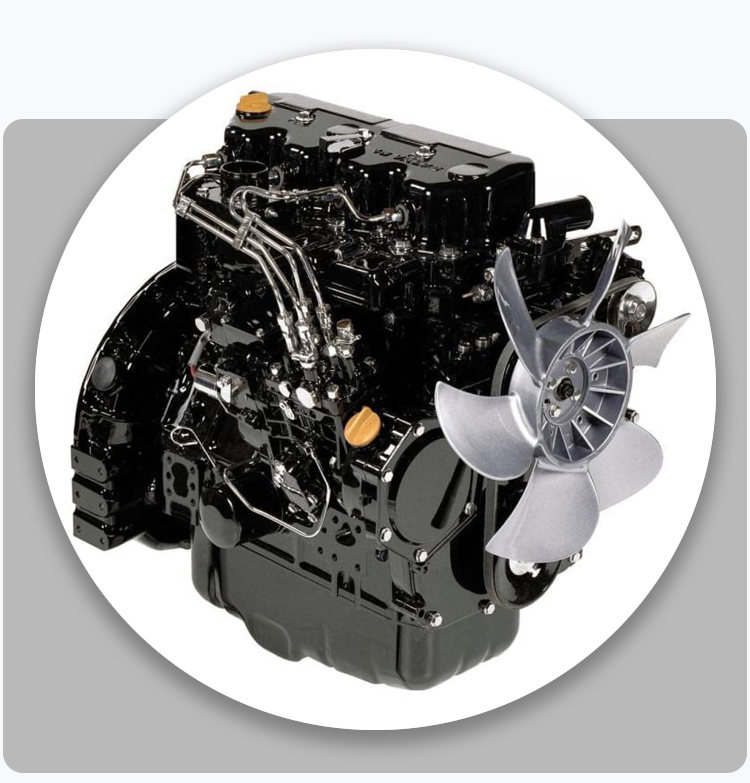

Yuchai agricultural equipment special power for excellent power, reliability, economy, high efficiency and wide applicability of the reputation of the industry.

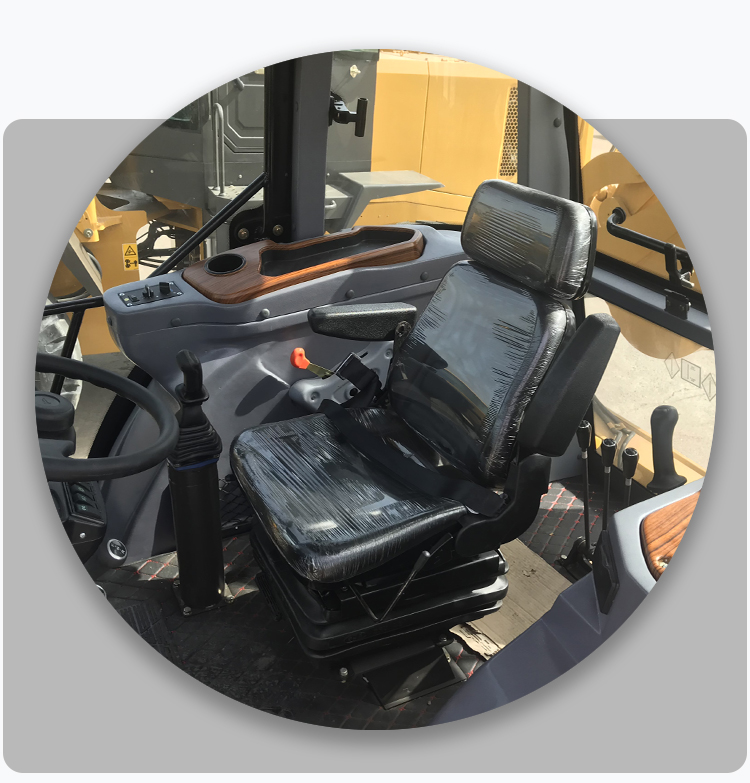

Equipped front and rear hydraulic pilot controls, air conditioning, and a rearview camera to ensure precise and comfortable operation.

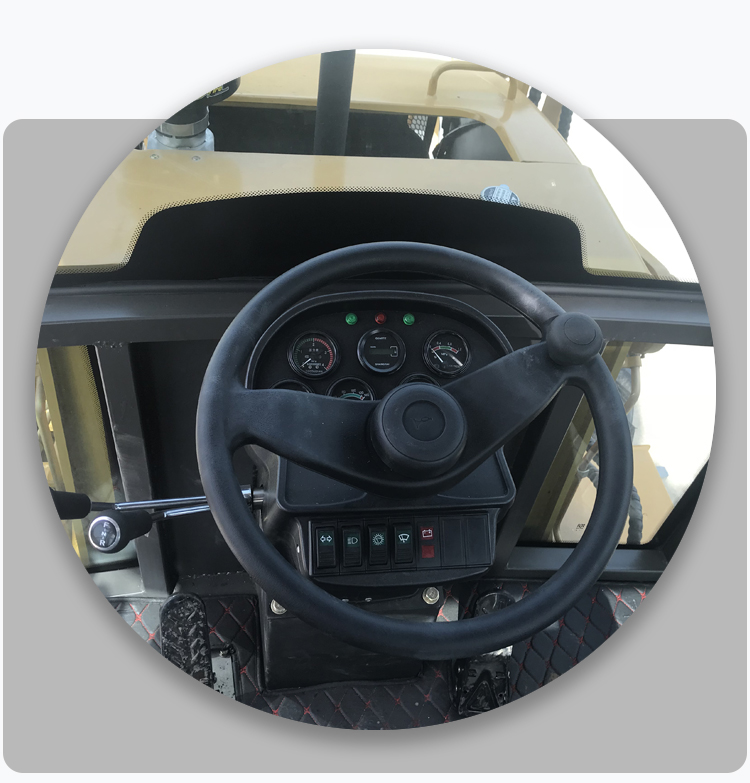

The steering wheel has a power knob for easy control and maneuverability.

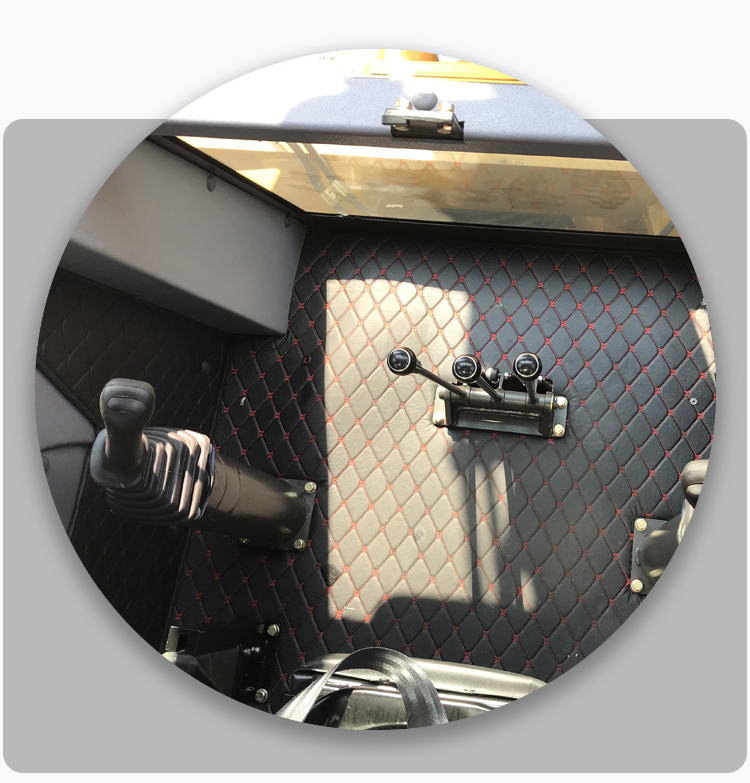

The hydraulic pilot controls for the digging arm make it easy to operate and precise control. The stabilizer legs are controlled by mechanical levers,ensuring stability during operation.

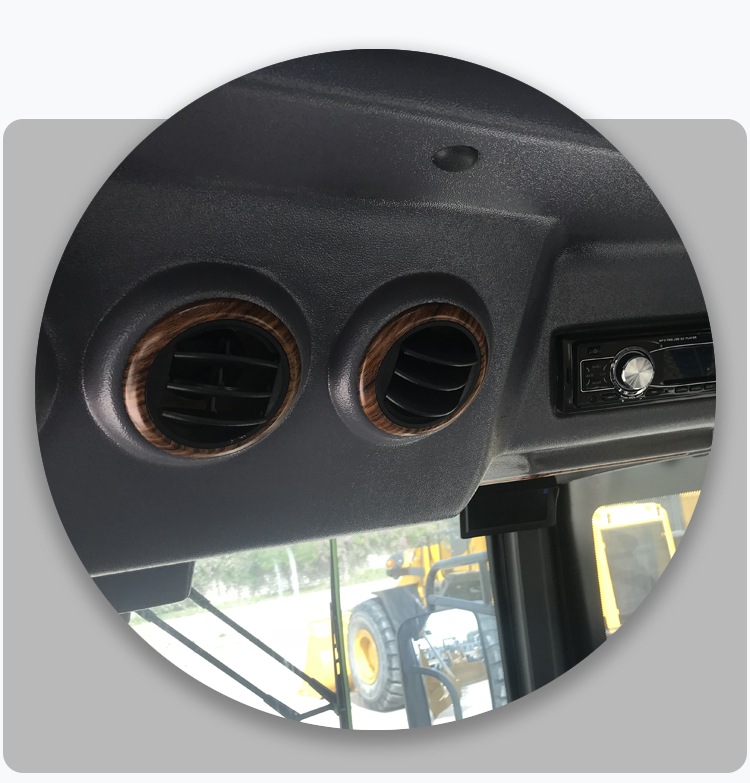

The built-in air conditioning and radio enhance operator comfort during use. These features ensure a more pleasant and efficient working environment.
OPTIONS ATTACHMENTS

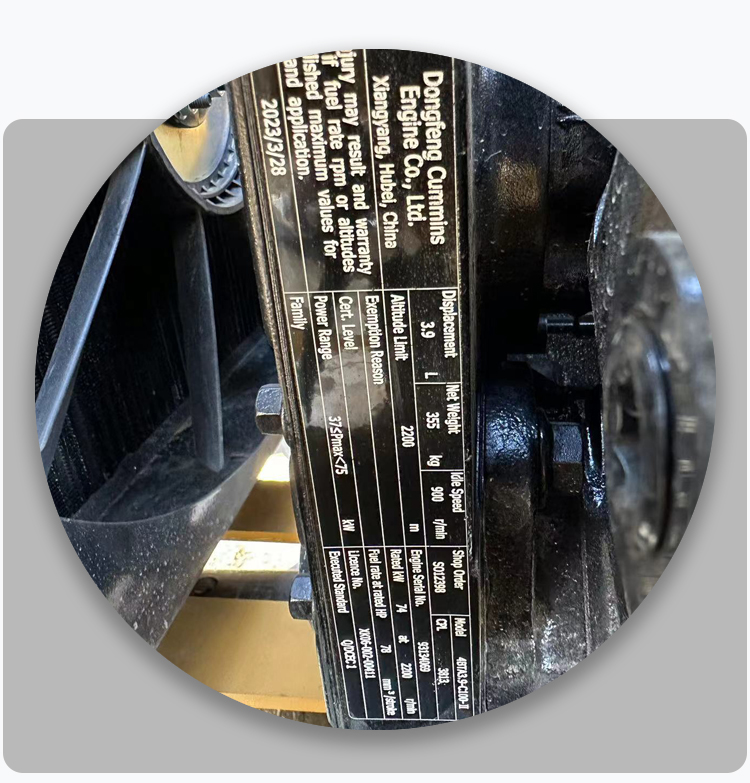

Cummins engine is optional to meet the needs of users in different regions

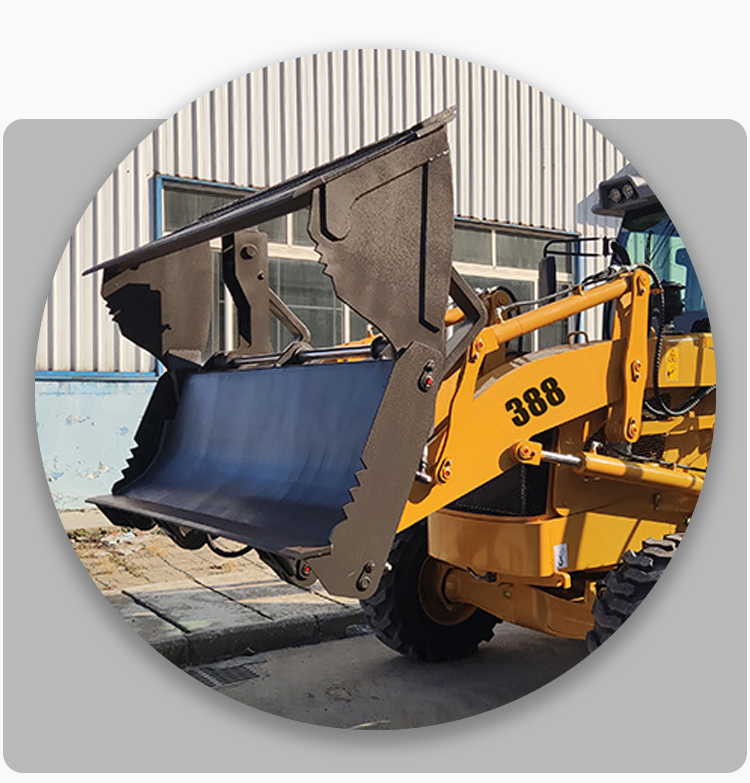

The 6-in-1 bucket is a versatile tool that lets you dig, load, and grade. It’s a real time-saver that helps you get more done.

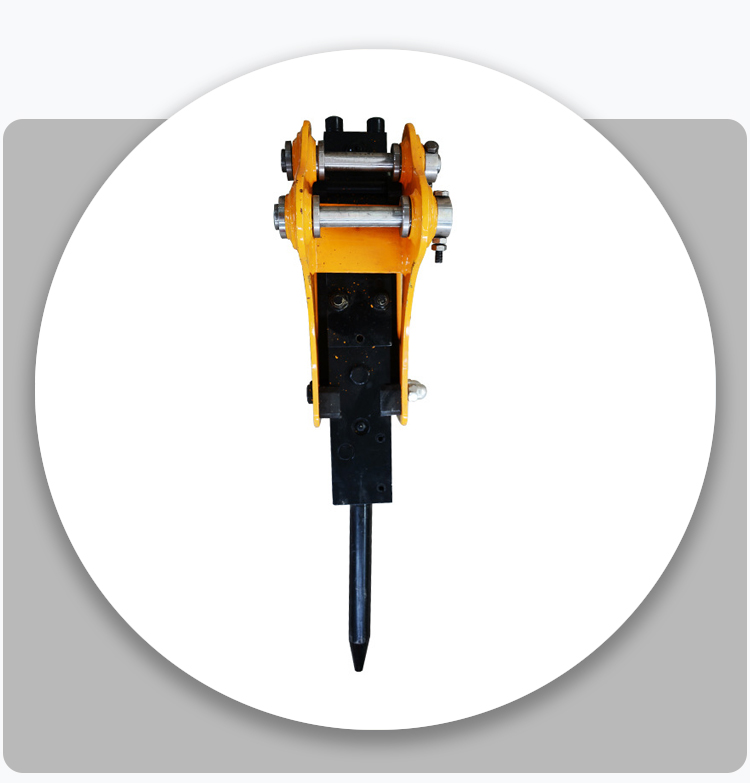

An breaker is used for demolishing concrete structures and breaking rocks into smaller pieces. It enhances the machine’s capability to perform heavy-duty tasks in construction and mining operations.
