IDF60

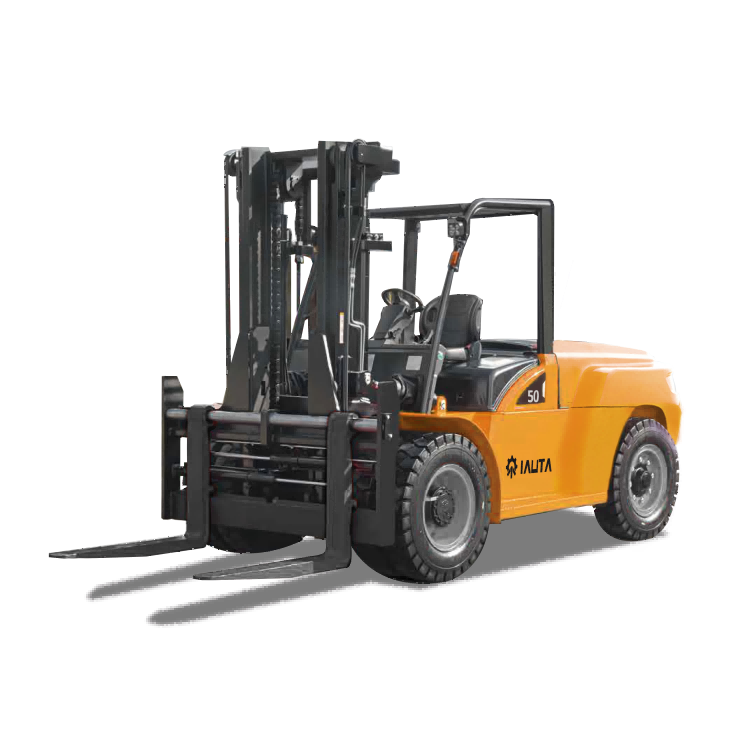

6 ton diesel forklift
The use of suspended hydraulic transmission and a cast integral steering axle with shock absorption greatly improves driving comfort; the use of a sensor-type steering system improves work efficiency.
- Load capacity(Kg)6000
- Load center(mm)600
- PowerDiesel
- Engine ModelQuanchaiS45
PRODUCT FEATURE
1. LED lighting system: The whole vehicle uses LED lights, which saves energy and electricity, and greatly improves the performance and service life of the lamps.
2. Iron air filter: The safety filter element is added to make the engine intake cleaner, and more powerful, and the service life is greatly increased.
3. Body appearance: The sheet metal mold is formed in one step, the lines are not only smooth and beautiful, but also have better anti-collision and anti-deformation performance. The surface pickling, phosphating, and rust removal + baking paint process has good anti-corrosion, anti-rust, and anti-oxidation effects, and higher later value retention.
4. Increase space: greatly increase the foot space, the front leg of the overhead guard has a large arc, and the driving space is widened.
5. The use of load sensing and dual-pump confluence hydraulic systems greatly improves the operating efficiency and reduces the energy consumption of the whole machine.
6. Full hydraulic braking system, strong braking capacity; use of high-performance large-capacity bladder accumulator, high reliability of emergency braking;
7. Wide-view mast: high-strength wide-view mast, greatly improves the driver’s front field of vision and improves driving safety
8. Split radiator: Split radiator, with better heat dissipation effect, the reliable thermal balance of the whole machine
9. Humanization: semi-enclosed seat, ergonomic, greatly improves driving comfort and reduces driving fatigue
PARAMETERS
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | Value |
|---|---|---|
| Model | IDF60 | |
| Power type | diesel | |
| Lift capacity | kg | 6000 |
| Load center distance | mm | 600 |
| Battery (Voltage/Capacity) | V/Ah | 24/100 |
| PERFORMANCE PARAMETERS | ||
| Max. lift height | mm | 3000 |
| Free lift height | mm | 190 |
| Mast tilt angle (front/rear) | 6/12 | |
| Max. lift speed (full load/no load) | mm/s | 500/520 |
| Max. lowering speed (full load/no load) | mm/s | 360/400 |
| Max. travelling speed (full load/no load) | km/h | 25/30 |
| Min. turning radius | mm | 3320 |
| Gradeability (full load/no load) | % | 20/25 |
| Max. traction force | KN | 70 |
| Overweight | kg | 8800 |
| DIMENSIONS | ||
| Length (without fork) | mm | 3480 |
| Width | mm | 2000 |
| Height of mast | mm | 2500 |
| Overall height (overhead guard) | mm | 2450 |
| Height of load-backrest | mm | 1440 |
| Overall height at max. lift | mm | 4430 |
| Min. ground clearance | mm | 200 |
| Wheel base | mm | 2250 |
| Front wheel tread | mm | 1470 |
| Rear wheel tread | mm | 1710 |
| Front overhang | mm | 590 |
| Rear overhang | mm | 640 |
| OTHER PARAMETERS | ||
| Front tires | 8.25-15-14PR | |
| Rear tires | 8.25-15-14PR | |
| Fork size (L*W*H) | mm | 1220×150×60 |
| ENGINES | ||
| Engine model | Quanchai S45-115C41 | |
| Rated power | kW/r | 85/2200 |
| Rated torque | N.m/r | 500/1600 |
| Number of cylinders | 4 | |
| Displacement | L | 4.29 |
DETAILS
According to the advanced ergonomic design, integrated control valve type operating handle, electrical switches centralized layout, fast and convenient manipulation.
The widened design of the mast makes the driver’s vision wider. The mast is made of CJsteel, with solid structure, high bearing strength, and safe and reliable operation.
The harness layout is neat and beautiful, and the maintenance is convenient; The vehicle body at both sides of the electrical parts is fixed and balanced firmly, The harness is shorter, without unnecessary bending,and the conductivity is higher.

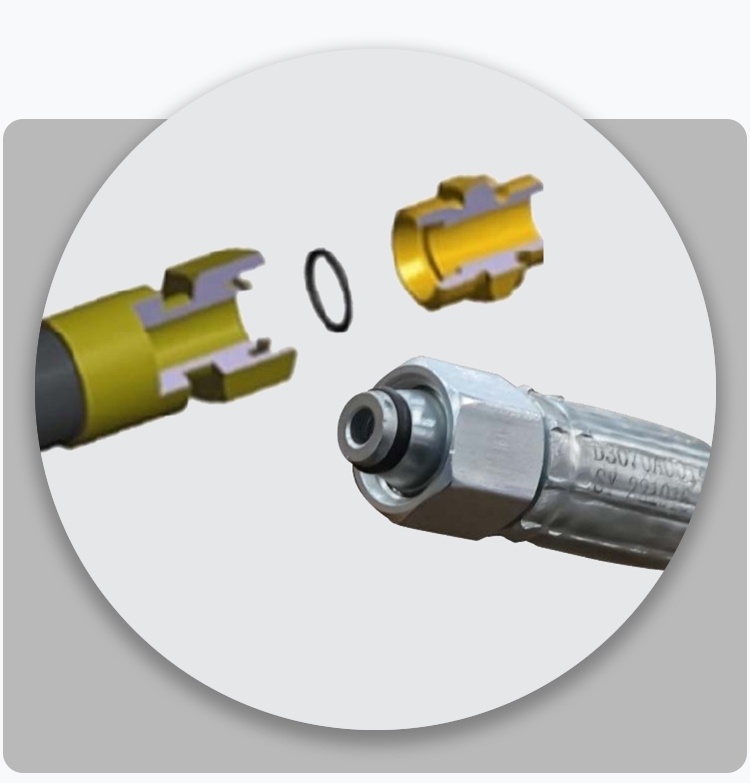

The full hydraulic load sensing system is adopted to give priority to steering, which makes the steering response faster and easier to operate;The hydraulic pipeline is double sealed with 24°cone+O-ring to reduce leakage.
Integrated design of electrical circuit, fuses and relays are concentrated in the electrical box, and there are backup fuses; Located inside the hood, it is waterproof and dust-proof, with reliable connection and convenient maintenance.

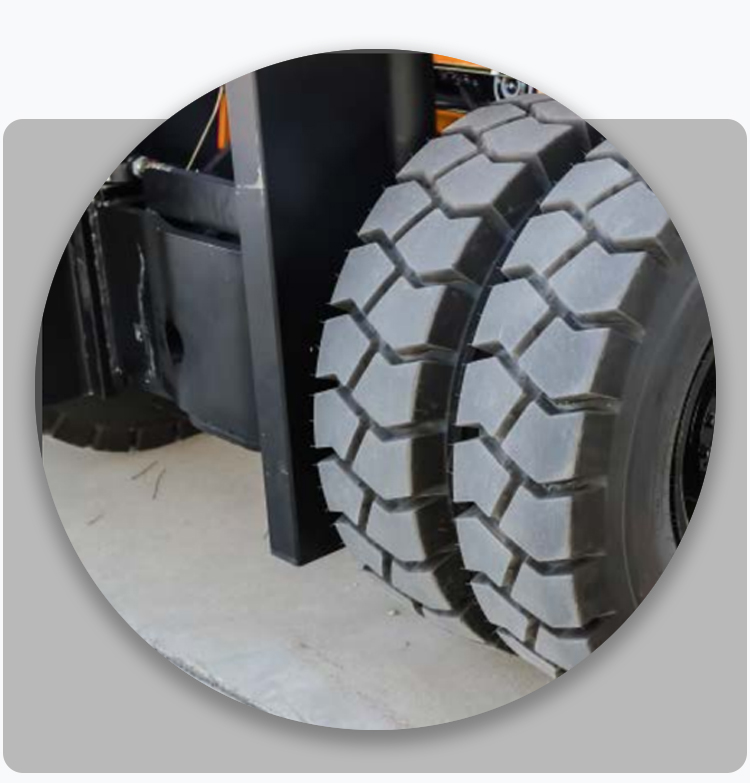

The axle housing is made of cast steel, with a more solid structure and stronger bearing capacity.Front double wheels are equipped as standard, with wider section and more stable operation.
OPTIONS
It provides the ability to move the forks horizontally, helping customers use the forklift more efficiently
The solid tires of the forklift offer enhanced durability, puncture resistance, and lower maintenance, ensuring reliable performance in various challenging environments.
We offer a variety of popular engine options for you to choose from, Such as ISUZU and Mitsubishi. These options ensure that you can quickly obtain replacement parts locally.
