IDF35
3.5 ton diesel forklift
The use of suspended hydraulic transmission and a cast integral steering axle with shock absorption greatly improves driving comfort; the use of a sensor-type steering system improves work efficiency.
- Load capacity(Kg)3500
- Load center(mm)500
- PowerDiesel
- Engine ModelXinchai 4D27G31
PRODUCT FEATURE
1. The machine cover adopts an overall sheet metal structure, with beautiful appearance and internal frame rib structure, high strength and reliable quality.
2. Adopting a fully hydraulic steering system, the steering torque is small and the operation is easy
3. The use of new technology wiring harnesses, waterproof connectors, and multi-channel fuse arrangements improve the safety and stability of the circuit system.
4. The steering wheel, seats and instrument panel are ergonomically designed, making the driver’s operation more comfortable.
5. Using a large flow air filter, perfectly combined with the engine, the vehicle has high efficiency, strong power and low noise.
6. Using a large-capacity water tank and optimizing the heat dissipation system, the heat dissipation performance of the vehicle is greatly improved.
7. The instrument is intuitive and concise, making it easy to observe water temperature, oil volume, usage time and other data.
8. The whole machine has small vibration and low noise, which improves the driver’s operating comfort.
9. Reasonable oil circuit layout and pipeline design reduce oil pressure loss and prevent oil temperature from being too high
10. The engine cover opening angle can reach 80°, making maintenance more convenient
PARAMETERS
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | Value |
|---|---|---|
| Model | IDF35 | |
| Power type | diesel | |
| Lift capacity | kg | 3500 |
| Load center distance | mm | 500 |
| Battery (Voltage/Capacity) | V/Ah | 12/80 |
| PERFORMANCE PARAMETERS | ||
| Max. lift height | mm | 3000 |
| Free lift height | mm | 130 |
| Mast tilt angle (front/rear) | 6/12 | |
| Max. lift speed (full load/no load) | mm/s | 480/510 |
| Max. lowering speed (full load/no load) | mm/s | 500/450 |
| Max. travelling speed (full load/no load) | km/h | 18.5/19 |
| Min. turning radius | mm | 2560 |
| Gradeability (full load/no load) | % | 15/20 |
| Max. traction force | KN | 19.5 |
| DIMENSIONS | ||
| Length (without fork) | mm | 2810 |
| Width | mm | 1230 |
| Height of mast | mm | 2125 |
| Overall height (overhead guard) | mm | 2130 |
| Height of load-backrest | mm | 1225 |
| Overall height at max. lift | mm | 4230 |
| Min. ground clearance | mm | 130 |
| Wheel base | mm | 1750 |
| Front wheel tread | mm | 1000 |
| Rear wheel tread | mm | 970 |
| Front overhang | mm | 480 |
| Rear overhang | mm | 580 |
| OTHER PARAMETERS | ||
| Front tires | 28x9-15-14PR | |
| Rear tires | 6.50-10-10PR | |
| Fork size (L*W*H) | mm | 1220×122×45 |
| ENGINES | ||
| Engine model | Xinchai4D27G31 | |
| Rated power | kW/r | 36.8/2500 |
| Rated torque | N.m/r | 156/1700-1900 |
| Number of cylinders | 4 | |
| Displacement | l | 2.67 |
DETAILS
The Xinchai/QuanChai high-pressure common rail engine isa powerful, quality-assured engine with cleaner andmore fuel-efficient emissions

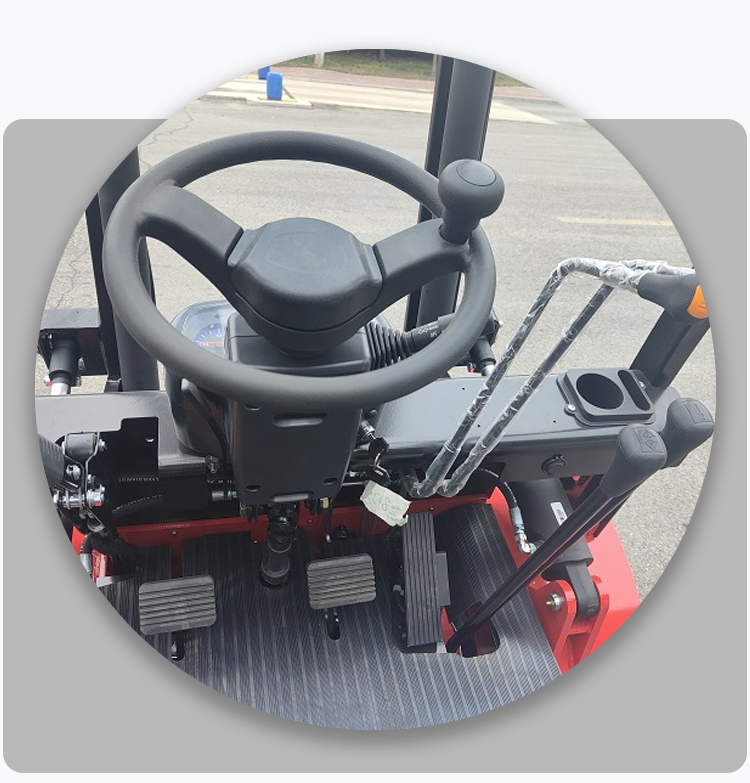

Based on advanced ergonomic design, integrated control valve-style operating handle and centralized layout of electrical switches make operation quick and convenient.

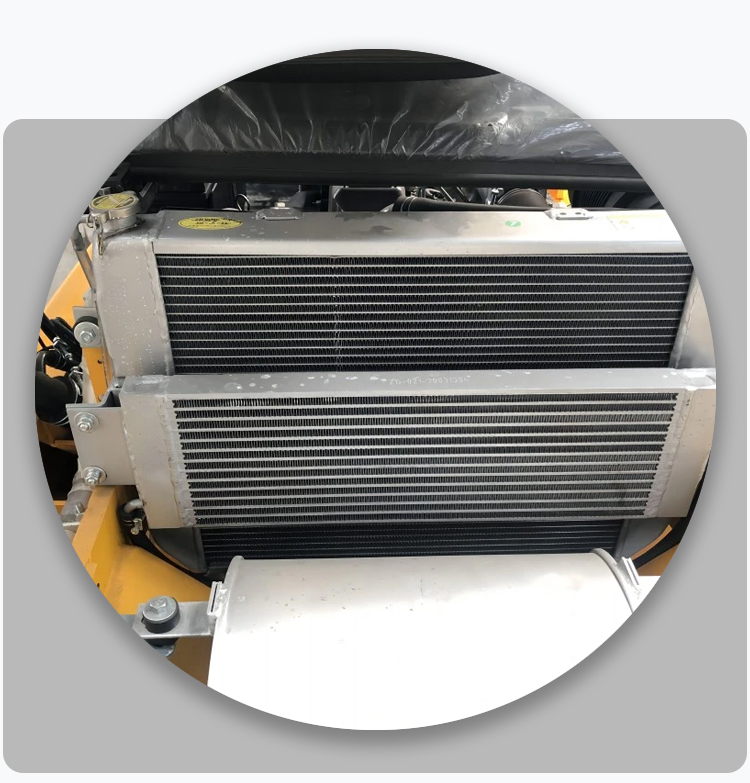

Maintaining the forklift’s cooling system ensures it always operates efficiently and reliably.

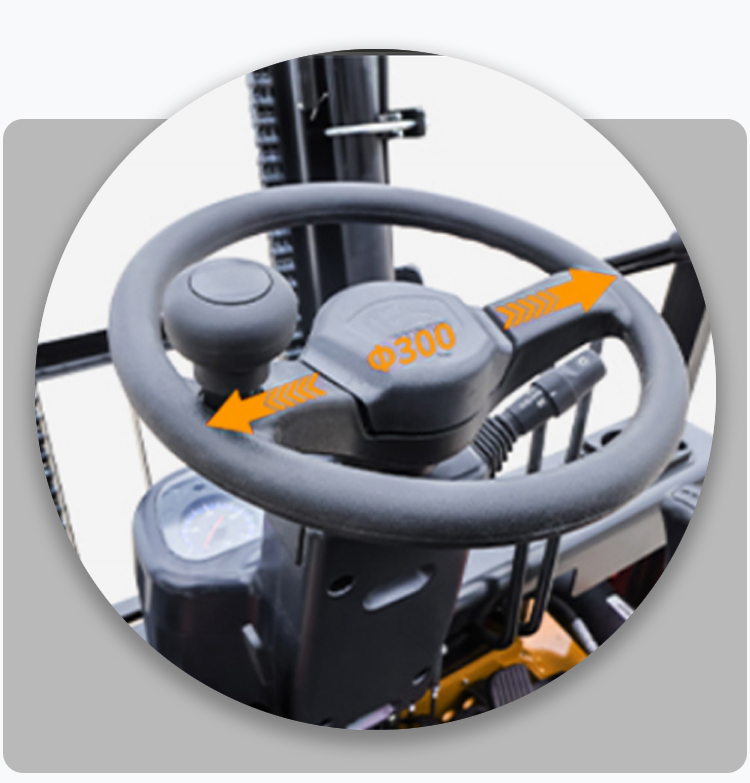

The small-diameter steering wheel(ф300) with adjustable tilt angle designed according to ergonomics has a good feel and reduces operator fatigue
Using top-tier industrial tires from China ensures the product’s longevity, stability, and safety, providing reliable performance even in the most demanding environments.

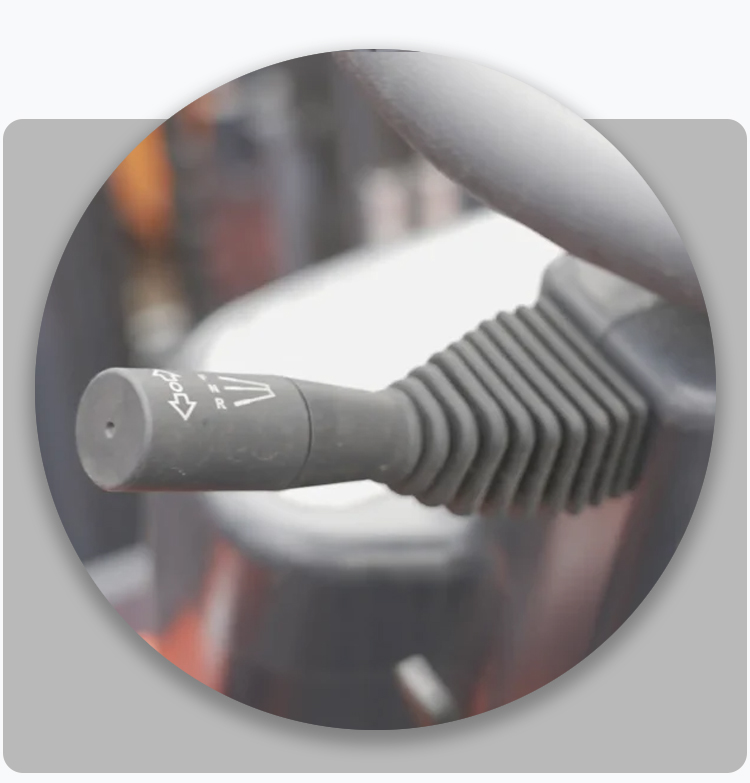

Standard across all models, electronic paddle shifters replace traditional manual gear shift levers, offering a more efficient and seamless shifting experience.
OPTIONS
It provides the ability to move the forks horizontally, helping customers use the forklift more efficiently
The solid tires of the forklift offer enhanced durability, puncture resistance, and lower maintenance, ensuring reliable performance in various challenging environments.
We offer a variety of popular engine options for you to choose from, Such as ISUZU and Mitsubishi. These options ensure that you can quickly obtain replacement parts locally.
