IDF300

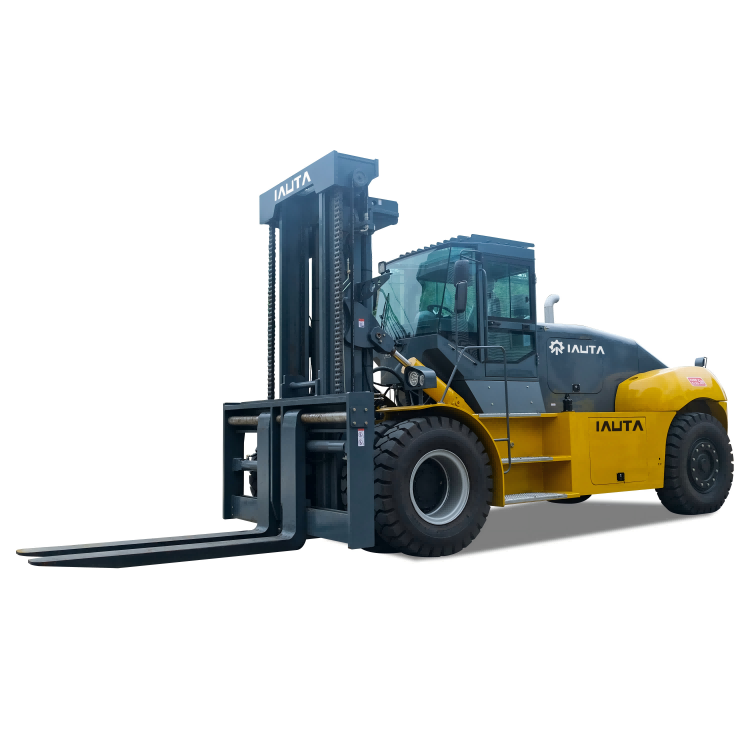

X series 30 ton forklift
The 30-ton forklift has a strong diesel engine that uses little fuel and works quietly. It features powerful hydraulics for fast lifting and an automatic gearbox for smooth shifting. This forklift is built for tough jobs and is easy to maintain.
- Load capacity(Kg)30 000
- Load center(mm)1250
- PowerDiesel
- Engine ModelWEICHAI WP10G240
PRODUCT FEATURE
- Efficient Hydraulics: Dual-pump system boosts lifting speed and work efficiency.
- Powerful Engine: Low-speed, high-torque diesel engine meets US and EU emission standards.
- Smart Gearbox: Automatically adjusts shifting for easier, safer operation.
- Reliable Brakes: Oil-cooled wet brakes ensure long-lasting performance.
- Precise Steering: Horizontal steering axle offers accurate control in tough conditions.
PARAMETERS
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | Value |
|---|---|---|
| Model | IDF300 | |
| Power type | diesel | |
| Lift capacity | kg | 30 000 |
| Load center distance | mm | 1250 |
| Min.ground clearance | mm | 400 |
| Wheel base | mm | 4800 |
| PERFORMANCE PARAMETERS | ||
| Max.lift height | mm | 4000 |
| Mast tilt angle (front/rear) | ° | 6/12 |
| Max.lift speed (full load/no load) | mm/s | 260/280 |
| Max.travelling speed (full load/no load) | km/h | 25/28 |
| Min.turning radius | mm | 6900 |
| Gradeability (full load/no load) | % | 20/20 |
| Max.traction force | KN | 200 |
| Overweight | kg | 38 000 |
| DIMENSIONS | ||
| Length (without fork) | mm | 7360 |
| Width | mm | 3360 |
| Height of mast | mm | 4150 |
| Overall height (overhead guard) | mm | 3460 |
| Overall height at max.lift | mm | 9760 |
| Front wheel tread | mm | 2430 |
| Rear wheel tread | mm | 2230 |
| OTHER PARAMETERS | ||
| Front tires | 14.00-24-32PR | |
| Rear tires | 14.00-24-32PR | |
| Tires Qty (Front/rear) | 4/2 | |
| Fork size (L*W*H) | mm | 3400×320×120 |
| Driving Brake | Hydraulic clamp disc | |
| Transmission gears (Front/rear) | 2/1 | |
| ENGINES | ||
| Engine model | WEICHAI WP10G240 | |
| Rated power | kW/r | 178/2200 |
| Rated torque | N.m/r | 1100/1400-1600 |
| Number of cylinders | 6 | |
| Displacement | cc | 9726 |
DETAILS
Weichai engine features of ample power, excellent fuel efficiency, low vibration and emission, high reliability, Compact in design, light in weight.

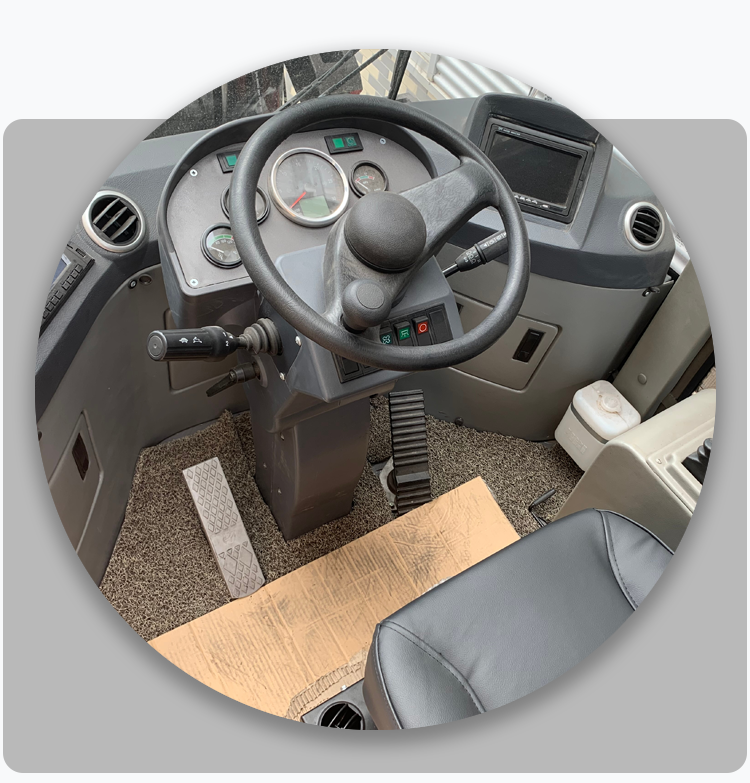

The control levers are ergonomically designed for easy access and precise operation, enhancing efficiency and reducing operator fatigue.
The harness layout is neat and beautiful, and the maintenance is convenient; The vehicle body at both sides of the electrical parts is fixed and balanced firmly, The harness is shorter, without unnecessary bending,and the conductivity is higher.
The high-mounted exhaust system ensures safety by directing harmful fumes away from operators and reducing the risk of ground-level damage, while the efficient oil filter extends engine life by removing impurities and minimizing wear

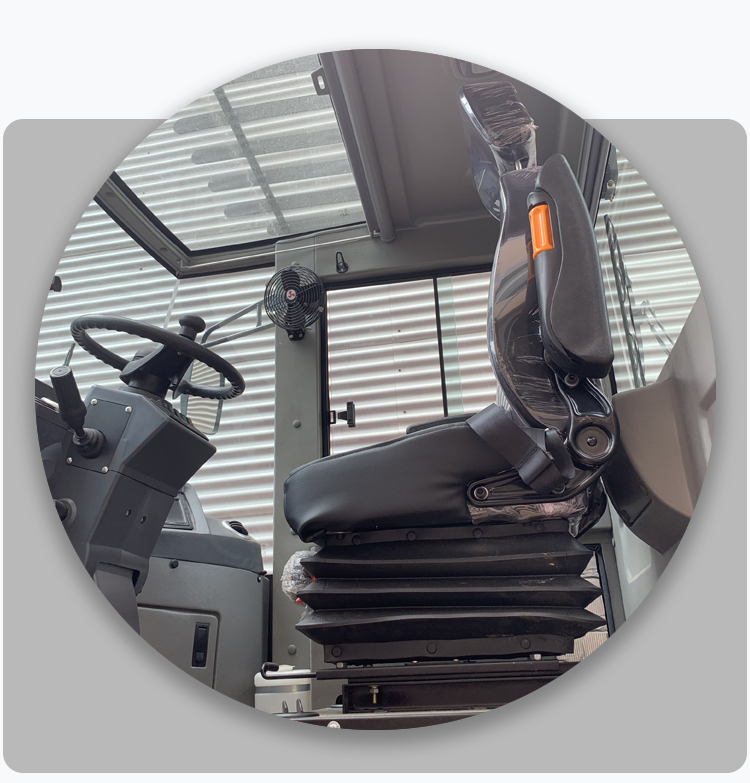

The driver’s cabin offers comfort and efficiency with ergonomic controls, a clear dashboard, and a spacious design. The cushioned, adjustable seat ensures comfort, while air conditioning and ventilation enhance working conditions.
The Toyota forklift seat offers ergonomic support with adjustable lumbar and suspension systems for comfort, plus safety features like a retractable belt and side bolsters
OPTIONS
It provides the ability to move the forks horizontally, helping customers use the forklift more efficiently
The solid tires of the forklift offer enhanced durability, puncture resistance, and lower maintenance, ensuring reliable performance in various challenging environments.
We offer a variety of popular engine options for you to choose from, Such as ISUZU and Cummins. These options ensure that you can quickly obtain replacement parts locally.
