IDF160

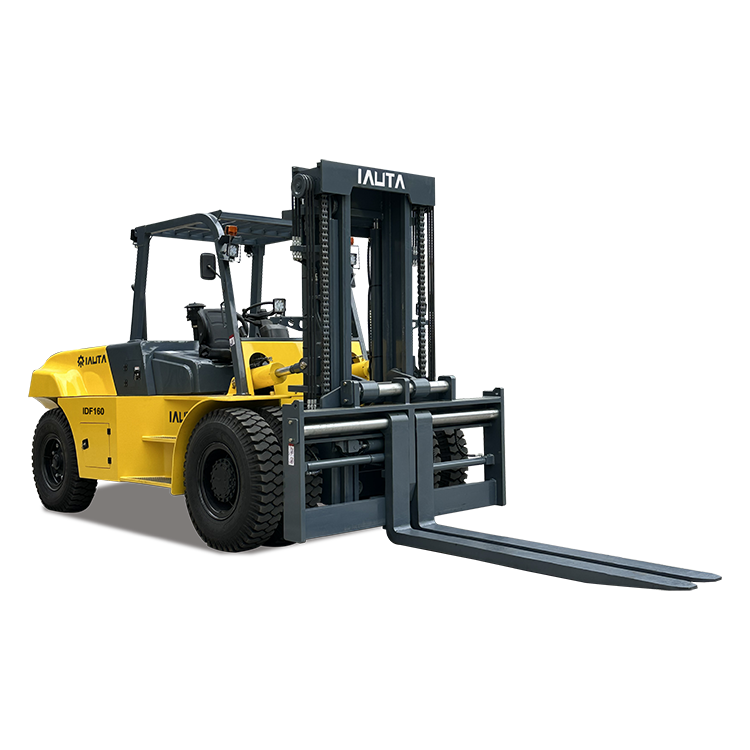

X series 16 ton forklift
The X series 16-ton forklift has a turbo engine for power and efficiency. It has a heavy-duty drive axle. The cab is comfortable and well-appointed.
- Load capacity(Kg)16 000
- Load center(mm)600
- PowerDiesel
- Engine ModelYucai YC6J150
PRODUCT FEATURE
- Powerful Performance: Equipped with a domestic 6-cylinder turbocharged engine, providing strong power, low fuel consumption, and easy cold start capabilities.
- High-Quality Gearbox: Features a low-noise, stable performance gear transmission, perfect for high-efficiency work environments.
- Efficient Chassis Design: Includes a double reduction drive axle for enhanced performance and a spacious design that improves operator comfort and visibility.
PARAMETERS
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | Value |
|---|---|---|
| Model | IDF160 | |
| Power type | diesel | |
| Lift capacity | kg | 16 000 |
| Load center distance | mm | 600 |
| Battery (Voltage/Capacity) | V/Ah | 12/80 |
| Min.ground clearance | mm | 270 |
| Wheel base | mm | 3300 |
| PERFORMANCE PARAMETERS | ||
| Max.lift height | mm | 3000 |
| Mast tilt angle (front/rear) | ° | 6/12 |
| Max.lift speed (full load/no load) | mm/s | 240/300 |
| Max.travelling speed (full load/no load) | km/h | 22/30 |
| Min.turning radius | mm | 4700 |
| Gradeability (full load/no load) | % | 20/22 |
| Max.traction force | KN | 120 |
| Overweight | kg | 18 000 |
| DIMENSIONS | ||
| Length (without fork) | mm | 5600 |
| Width | mm | 2350 |
| Height of mast | mm | 2990 |
| Overall height (overhead guard) | mm | 2780 |
| Overall height at max.lift | mm | 6660 |
| Front wheel tread | mm | 1680 |
| Rear wheel tread | mm | 1760 |
| OTHER PARAMETERS | ||
| Front tires | 12.00-20 | |
| Rear tires | 12.00-20 | |
| Tires Qty (Front/rear) | 4/2 | |
| Fork size (L*W*H) | mm | 1800×200×90 |
| Driving Brake | Hydraulic clamp disc | |
| Transmission gears (Front/rear) | 2/1 | |
| ENGINES | ||
| Engine model | Yucai YC6J150 | |
| Rated power | kW/r | 110/2200 |
| Rated torque | N.m/r | 600/1600~1800 |
| Number of cylinders | 6 | |
| Displacement | cc | 6494 |
DETAILS
Yuchai engine features of ample power, excellent fuel efficiency, low vibration and emission, high reliability, Compact in design, light in weight.
The control levers are ergonomically designed for easy access and precise operation, enhancing efficiency and reducing operator fatigue.
The harness layout is neat and beautiful, and the maintenance is convenient; The vehicle body at both sides of the electrical parts is fixed and balanced firmly, The harness is shorter, without unnecessary bending,and the conductivity is higher.
The high-mounted exhaust system ensures safety by directing harmful fumes away from operators and reducing the risk of ground-level damage, while the efficient oil filter extends engine life by removing impurities and minimizing wear
Integrated design of electrical circuit, fuses and relays are concentrated in the electrical box, and there are backup fuses; Located inside the hood, it is waterproof and dust-proof, with reliable connection and convenient maintenance.
The Toyota forklift seat offers ergonomic support with adjustable lumbar and suspension systems for comfort, plus safety features like a retractable belt and side bolsters
OPTIONS
It provides the ability to move the forks horizontally, helping customers use the forklift more efficiently
The solid tires of the forklift offer enhanced durability, puncture resistance, and lower maintenance, ensuring reliable performance in various challenging environments.
We offer a variety of popular engine options for you to choose from, Such as ISUZU and Cummins. These options ensure that you can quickly obtain replacement parts locally.
